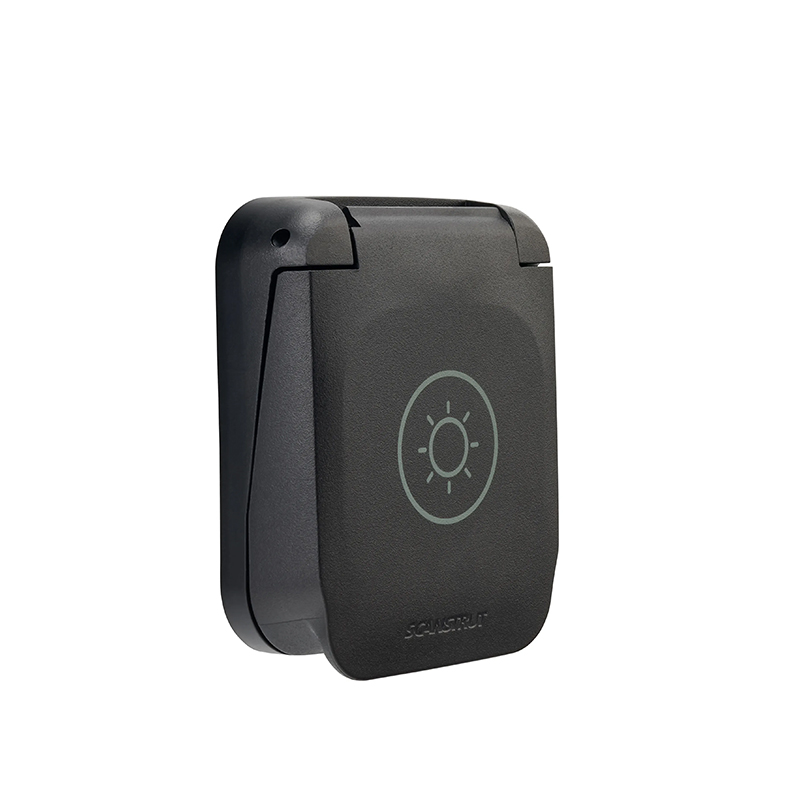

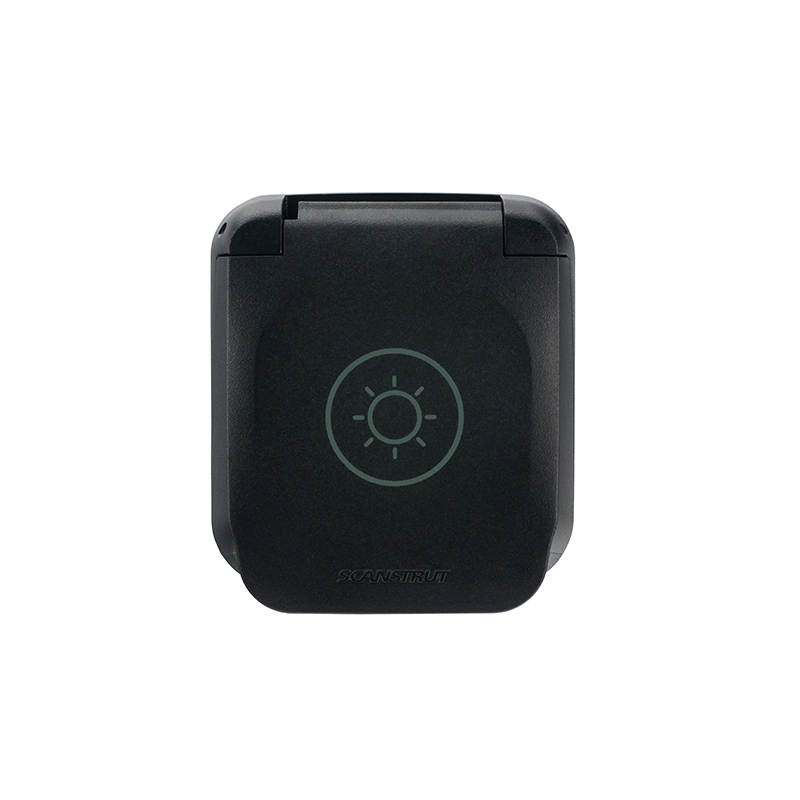

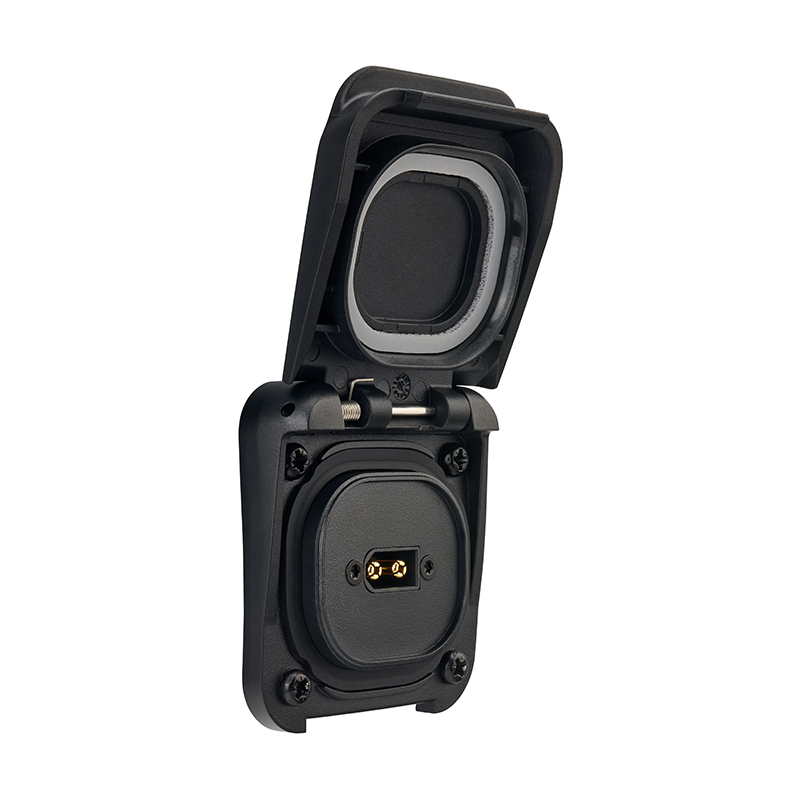

Scanstrut – Ventura Series – XT60 Solar Connection
Need quick and dependable outdoor access to an XT60? Meet the Scanstrut Ventura Series XT60 Solar Connection, your go-to power link for life off the beaten track.
Working seamlessly with the rest of the Ventura Series, integrating power, water, solar, and more into a single, cohesive design language.
Electrical Information
| Connection Type | Amass XT60EW-M Male Waterproof Type |
| Compatible Connectors | • XT60W-F Female Waterproof Type (IP65 in use)​ • XT60-F Standard Female Type |
| Connector Max​ Current | • 30A Continuous​ • 60A Instantaneous |
| Connector Max​ Voltage |
Rated 500V DC
|
| Max Power Delivery​ (12V Input) | 360W |
| Max Power Delivery​ (24V Input) | 720W |
| Max Power Delivery​ (48V Input) | 1440W |
| Cable Size | 4mm² / 12AWG |
| Cable Length | 150mm (6”) Tinned Copper Wire |
| Cable Bend Radius (4xD) | 18mm (0.71”) |
| Waterproof Rating | IP68, IP69K Front only when lid closed |
| Certification | CE, ROHS |
Drilling Template (Click Here)
Technical Drawing (Click Here)
