About this product

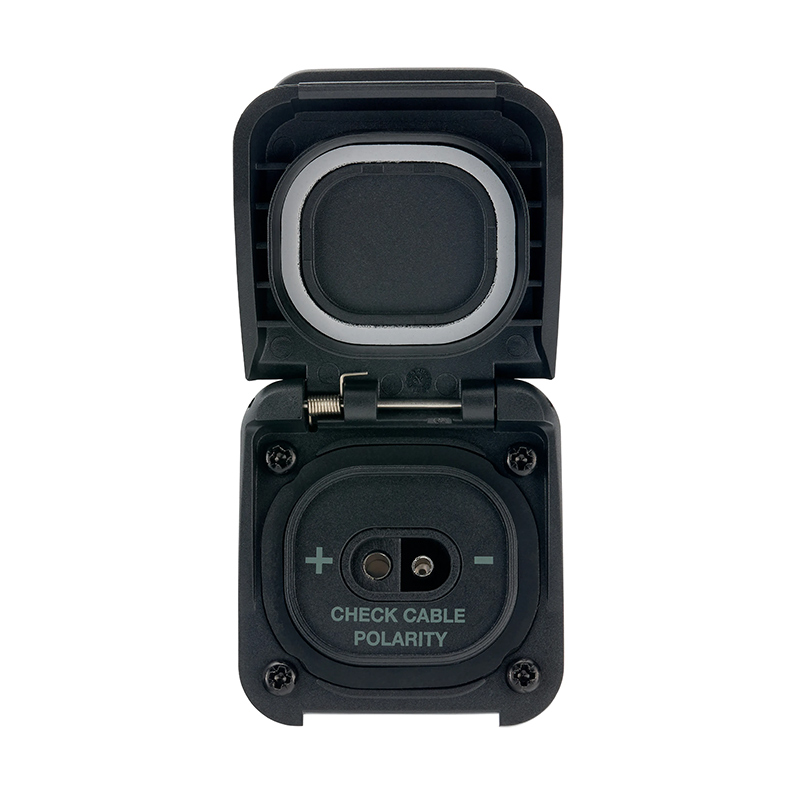

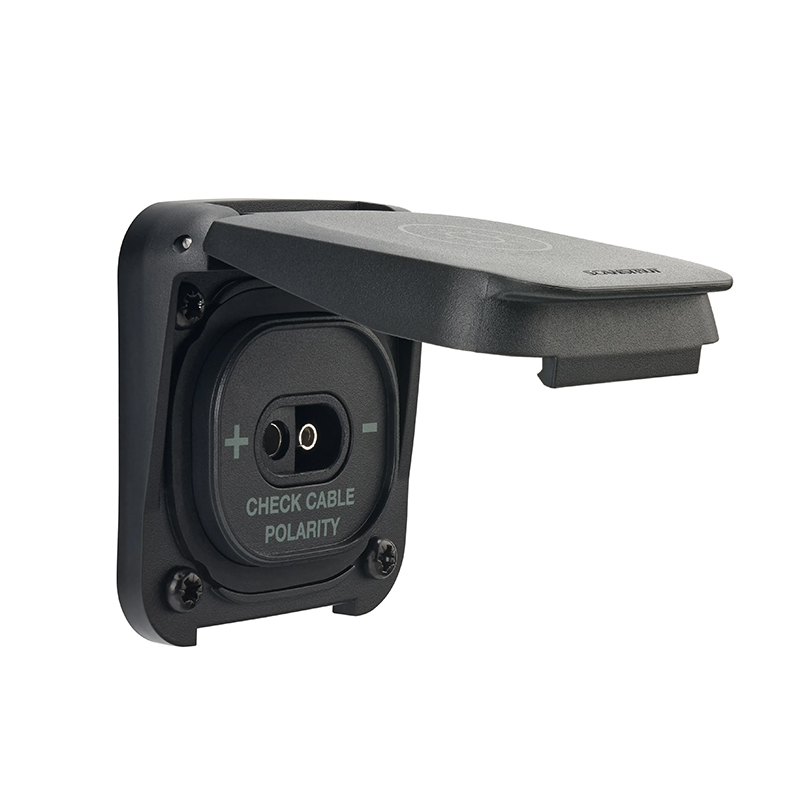

Scanstrut – Ventura Series – SAE Solar Connection
The Scanstrut Ventura Series SAE Solar Connection is made for those who live off the grid and chase the horizon. Whether you’re topping up with solar power at a remote basecamp, running a battery maintainer while your camper’s parked in the wild, or charging gear from your overland trailer, Ventura delivers tough, reliable performance, no matter where you roam.
Working seamlessly with the rest of the Ventura Series, integrating power, water, solar, and more into a single, cohesive design language.
Electrical Information
| Connection Type | SAE |
| Connector Max Current | 20A |
| Connector Max Voltage | Rated 24V DC |
| Max Power Delivery (12V Input) | 240W |
| Max Power Delivery (24V Input) | 480W |

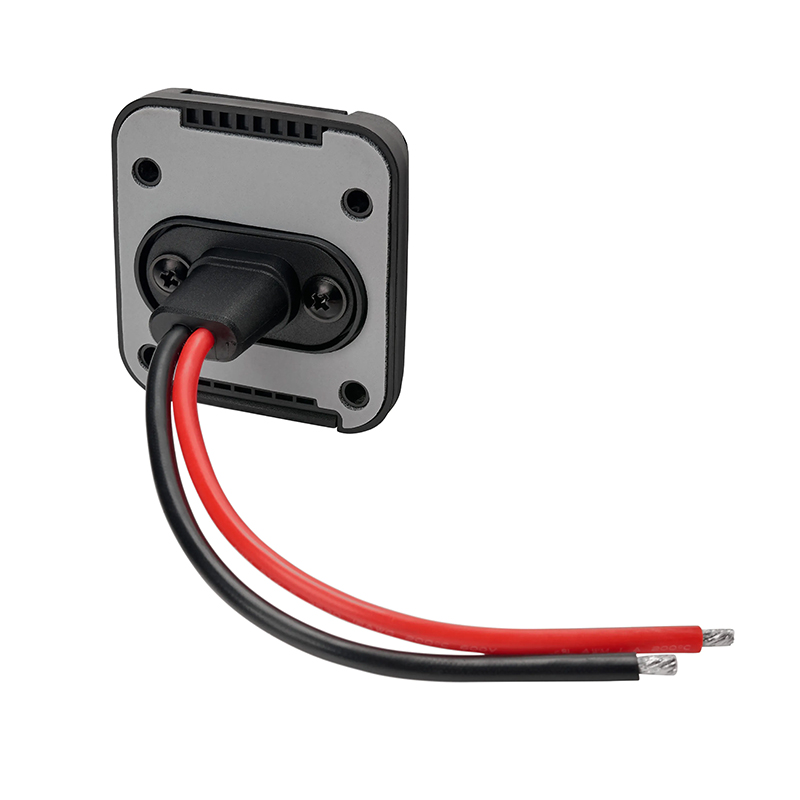

| Cable Size | 4mm² / 12AWG |
| Cable Length |
150mm (6”) Tinned Copper Wire |

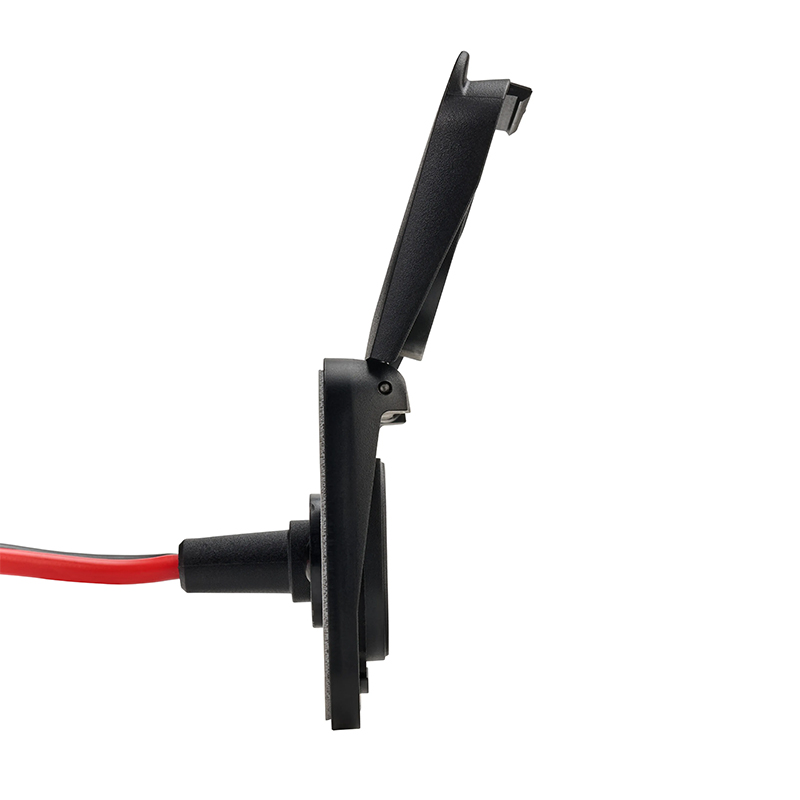

| Cable Bend Radius (4xD) |
18mm (0.71”)
|

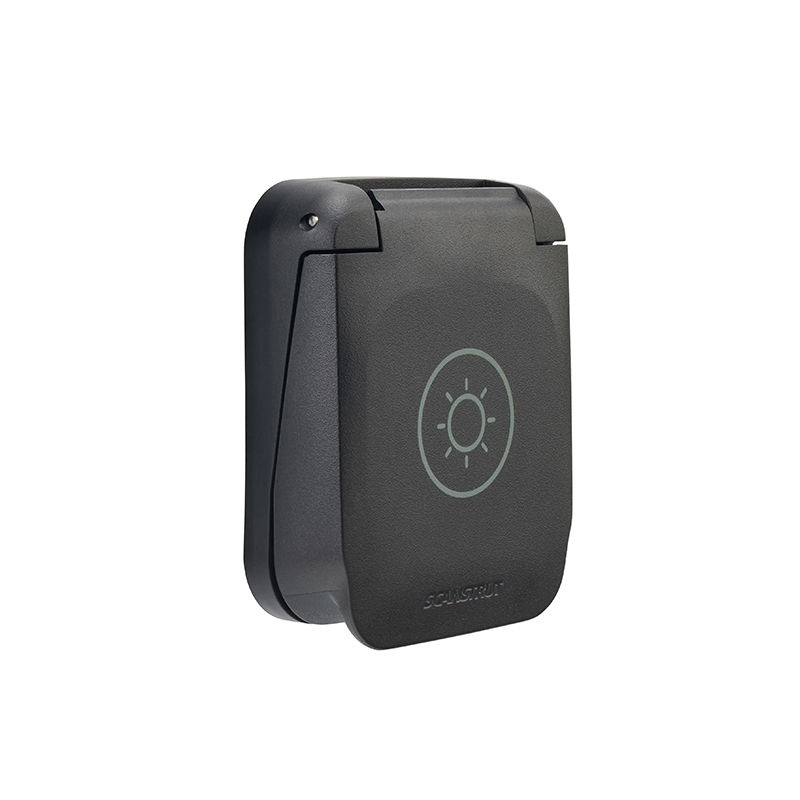

| Waterproof Rating | IP68, IP69K Front only when lid closed |
| Certification | CE, ROHS |
Drilling Template: (Click Here)
Technical Drawing: (Click Here)
