About this product
Scanstrut – Ventura Series – Quick-Connect Cold Water Outlet with Wash Down Kit
Whether you’re rinsing off sandy feet after a beach day, washing down muddy bikes, hosing off the dog, or cleaning up after a long day on the trail, the Scanstrut Ventura Series Quick-Connect Cold Water Outlet has your back.
Working seamlessly with the rest of the Ventura Series, integrating power, water, solar, and more into a single, cohesive design language
Designed for fast, hassle-free access to cold water wherever the road takes you, this outlet features a nickel-plated brass Quick-Connect coupling for effortless connection and smooth water flow.
The included 3m (10ft) coiled hose and stainless-steel shower head, with two spray patterns, Jet or Shower, to give you flexible, go-anywhere functionality, perfect for vanlifers, boaters, campers, and overlanders.
Built with Scanstrut marine-grade heritage, it’s crafted from 316 stainless steel and rigorously tested for UV resistance and waterproofing (IP68 & IP69K), so it’s made to handle whatever the elements throw your way. Like every Ventura Series product, it features a compact, uniform design that integrates beautifully with your exterior setup, matching sockets for power and solar to keep your build clean and cohesive.

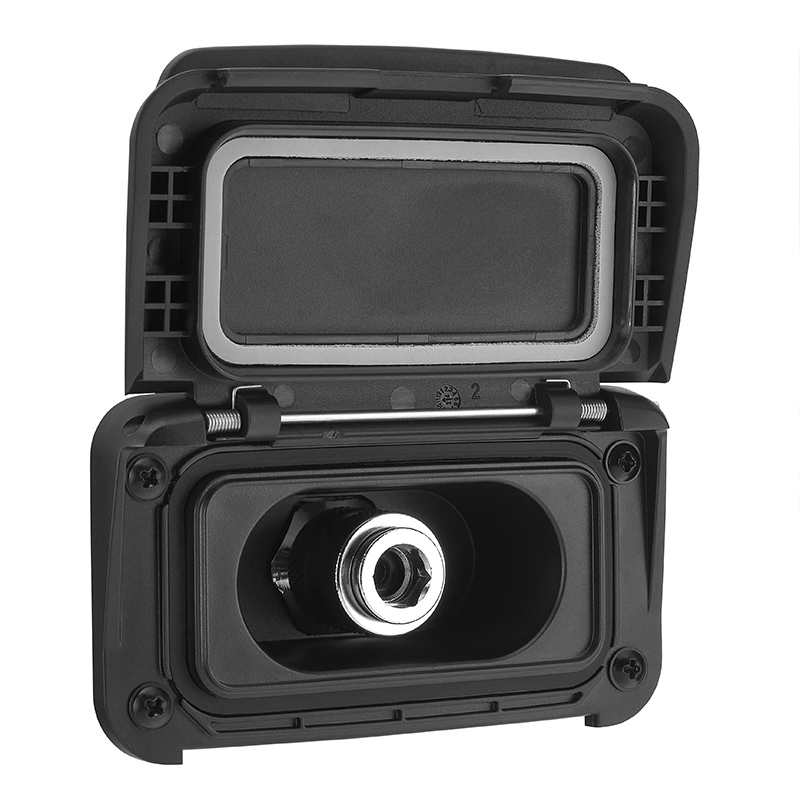

Housing Key Features
- IP68, IP69K Waterproof (Cover Closed)

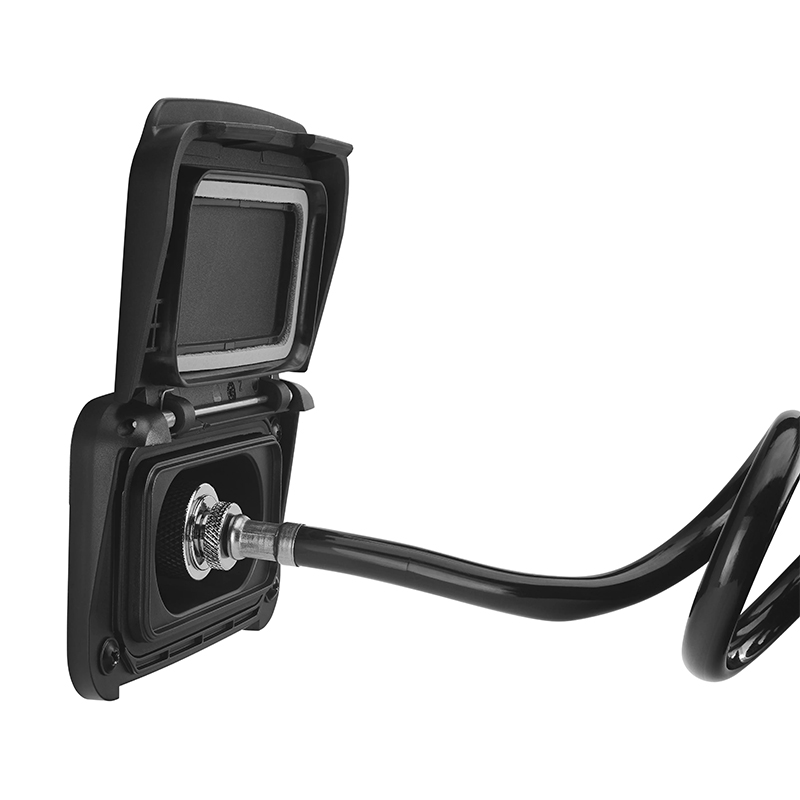

- Quick-Connect Nickel-Plated Brass Coupling
- Marine-Grade 316 Stainless Steel Components
- Self-Sealing Valve

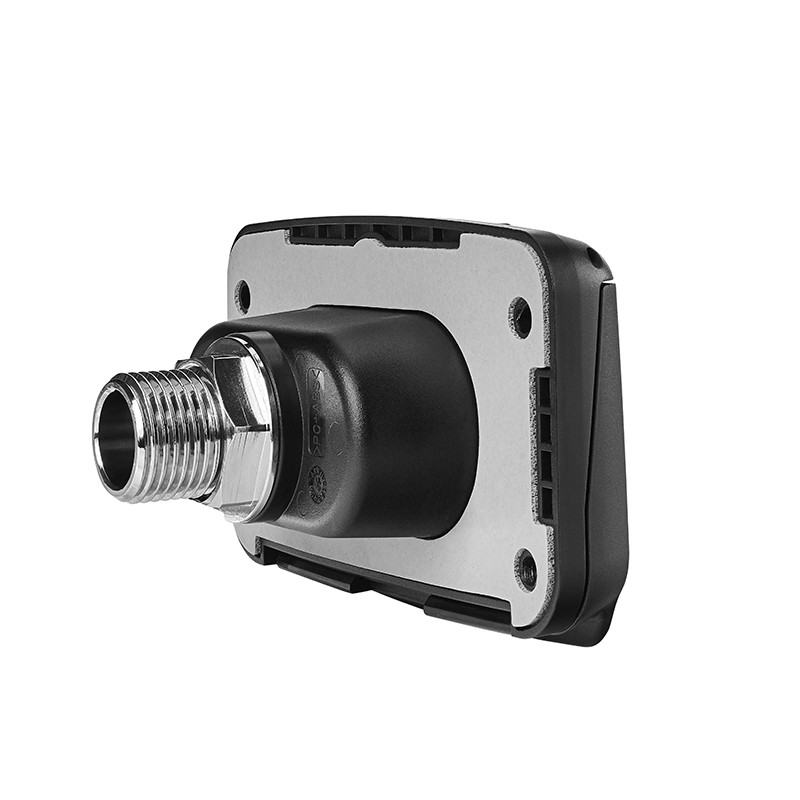

- Water Supply Thread Size ½” BSP
- Standard 38mm (1.50”) Holesaw Installation
- Built-in gasket for a watertight seal

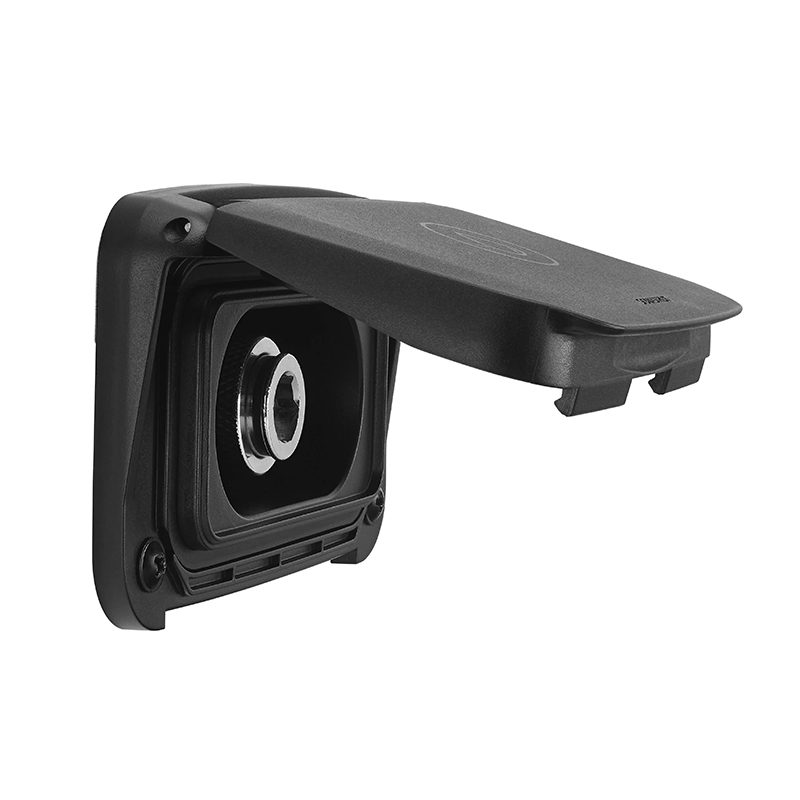

- Spring-loaded lid
- 90° Holding Bump-Feature
- Easy install
Sprayer Key Features

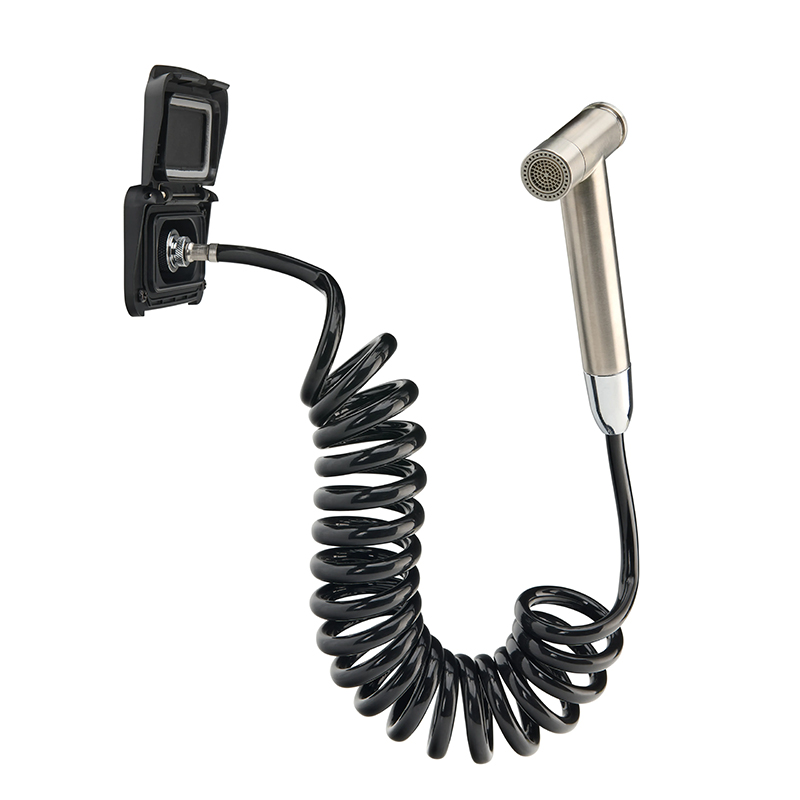

- Supplied with 3m (10ft) Coiled Hose – Multi-Pattern Stainless Steel Shower/Sprayer Head.
- Sprayer Type – Full stainless-steel construction, Locking flow switch, multi-adjustable spray pattern jet or shower.
Key Information
| Max Water System Pressure |
8 BAR (115PSI) |
| Hose Type |
3m (10ft) length coiled PU material |
| Hose Diameter |
9mm (0.35″) |
| Sprayer Type |
• Full stainless-steel construction
• Locking flow switch
• Adjustable spray pattern |
| Waterproof Rating |
IP68, IP69K Front only when lid closed |
| Certification |
ROHS |
Drilling Template: (Click Here)
